DJI M30T Series Drone + DJI RC Plus Remote Controller With BS30 Battery Station

SKU: DJI M30T Series drone with BS30 Categories: , , Tags: , , , , Brand:

Note: Due to shortage and currency fluctuation in Pakistan, kindly confirm price and availability before ordering!

Aircraft

  • Dimensions (unfolded, excl. propellers)

  • 470×585×215 mm (L×W×H)

  • Dimensions (folded)

  • 365×215×195 mm (L×W×H)

  • Diagonal Wheelbase

  • 668 mm

  • Weight (incl. two batteries)

  • 3770 ± 10 g

  • Max Takeoff Weight

  • 4000 g

  • Operation Frequency[1]

  • 2.4000-2.4835 GHz; 5.725-5.850 GHz

  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/SRRC/MIC) 5.8 GHz: <33 dBm (FCC/SRRC); <14 dBm (CE)

  • Hovering Accuracy (windless or breezy)

  • Vertical: ±0.1 m (Vision System enabled); ±0.5 m (N-mode with GPS); ±0.1 m (RTK) Horizontal: ±0.3 m (Vision System enabled); ±1.5 m (N-mode with GPS); ±0.1 m (RTK)

  • RTK Positioning Accuracy (fixed RTK enabled)

  • 1 cm+1 ppm (horizontal) 1.5 cm+1 ppm (vertical)

  • Max Angular Velocity

  • Pitch: 150°/sec.; Yaw: 100°/sec.

  • Max Tilt Angle

  • 35° (N-mode and Forward Vision System enabled: 25°)

  • Max Ascent/Descent Speed

  • 6 m/s, 5 m/s

  • Max Tilt Descent Speed

  • 7 m/s

  • Max Horizontal Speed

  • 23 m/s

  • Max Service Ceiling Above Sea Level (without other payload)

  • 5,000 m (with 1671 propellers) 7,000 m (with 1676 propellers)

  • Max Wind Resistance

  • 15 m/s 12 m/s during taking off and landing

  • Max Hover Time [2]

  • 36 min

  • Max Flight Time[2]

  • 41 min

  • Motor Model

  • 3511

  • Propeller Model

  • 1671 1676 High Altitude (not included)

  • Ingress Protection Rating[3]

  • IP55

  • GNSS

  • GPS+Galileo+BeiDou+GLONASS (GLONASS is supported only when RTK module is enabled)

  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

Gimbal

  • Angular Vibration Range

  • ±0.01°

  • Controllable Range

  • Pan: ±90° Tilt: -120° to +45°

  • Mechanical Range

  • Pan: ±105° Tilt: -135° to +60° Roll: ±45°

Zoom Camera

  • Sensor

  • 1/2″ CMOS, Effective pixels: 48M

  • Lens

  • Focal length: 21-75 mm (equivalent: 113-405 mm) Aperture: f/2.8-f/4.2 Focus: 5 m to ∞

Wide Camera

  • Sensor

  • 1/2″ CMOS, Effective pixels: 12M

  • Lens

  • DFOV: 84° Focal length: 4.5 mm (equivalent: 24 mm) Aperture: f/2.8 Focus: 1 m to ∞

Thermal Camera

  • Thermal Imager

  • Uncooled VOx Microbolometer

  • Lens

  • DFOV: 64° Focal length: 9.1 mm (equivalent: 40 mm) Aperture: f/1.0 Focus: 5 m to ∞

  • Infrared Temperature Measurement Accuracy[4]

  • ±2°C or ±2% (using the larger value)

  • Video Resolution

  • Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512

  • Photo Size

  • Infrared Image Super-resolution Mode: 1280×1024 Normal Mode: 640×512

  • Pixel Pitch

  • 12 um

  • Temperature Measurement Method

  • Spot Meter, Area Measurement

  • Temperature Measurement Range

  • High Gain Mode: -20° to 150° C (-4° to 302° F) Low Gain Mode: 0° to 500° C (32° to 932° F)

  • Temperature Alert

  • Supported

  • Palette

  • White Hot/Black Hot/Tint/Iron Red/Hot Iron/Arctic/Medical/Fulgurite/Rainbow 1/Rainbow 2

FPV Camera

  • Resolution

  • 1920×1080

  • DFOV

  • 161°

  • Frame Rate

  • 30 fps

Laser Module

  • Wavelength

  • 905 nm

  • Max Laser Power

  • 3.5 mW

  • Single Pulse Width

  • 6 ns

  • Measurement Accuracy

  • ± (0.2 m + D×0.15%)D is the distance to a vertical surface

  • Measuring Range

  • 3-1,200 m (0.5×12 m vertical surface with 20% reflectivity)

Vision Systems

  • Obstacle Sensing Range

  • Forward: 0.6-38 m Upward/Downward/Backward/Sideward: 0.5-33 m

  • FOV

  • 65° (H), 50° (V)

  • Operating Environment

  • Surfaces with clear patterns and adequate lighting (> 15 lux)

Infrared Sensing Systems

  • Obstacle Sensing Range

  • 0.1 to 10 m

  • FOV

  • 30°

  • Operating Environment

  • Large, diffuse, and reflective obstacles (reflectivity >10%)

  • Chemical System

  • LiNiMnCoO2

Auxiliary Lights

  • Effective Illumination Distance

  • 5 m

  • Illumination Type

  • 60 Hz, solid glow

Remote Controller

  • Screen

  • 7.02 inch LCD touchscreen, with a resolution of 1920×1200 pixels, and high brightness of 1200 cd/m2

  • Internal Battery

  • Type: Li-ion (6500 mAh @ 7.2 V) Charge Type: Supports battery station or USB-C charger maximum rated power 65W (max voltage of 20V) Charge Time: 2 hours Chemical System: LiNiCoAIO2

  • Operating Time[5]

  • Internal Battery: Approx. 3 hours 18 minInternal Battery + External Battery: Approx. 6 hours

  • Ingress Protection Rating[3]

  • IP54

  • GNSS

  • GPS+Galileo+BeiDou

  • Operating Temperature

  • -20° to 50° C (-4° to 122° F)

O3 Enterprise

  • Operating Frequency[1]

  • 2.4000-2.4835 GHz, 5.725-5.850 GHz

  • Max Transmission Distance (unobstructed, free of interference)

  • 2.4000-2.4835 GHz: 15 km (FCC); 8 km (CE/SRRC/MIC)

  • Max Transmission Distance (with interference)

  • Strong Interference (urban landscape, limited line of sight, many competing signals): 1.5-3 km (FCC/CE/SRRC/MIC) Medium Interference (suburban landscape, open line of sight, some competing signals): 3-9 km (FCC); 3-6 km (CE/SRRC/ MIC) Weak Interference (open landscape abundant line of sight, few competing signals): 9-15 km (FCC); 6-8 km (CE/ SRRC/MIC)

  • Transmitter Power (EIRP)

  • 2.4 GHz: <33 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.8 GHz: <33 dBm (FCC); <14 dBm (CE); <23 dBm (SRRC)

Wi-Fi

  • Protocol

  • Wi-Fi 6

  • Operating Frequency[1]

  • 2.4000-2.4835 GHz; 5.150-5.250 GHz; 5.725-5.850 GHz

  • Transmitter Power (EIRP)

  • 2.4 GHz: <26 dBm (FCC); <20 dBm (CE/ SRRC/MIC) 5.1 GHz: <26 dBm (FCC); <23 dBm (CE/ SRRC/MIC) 5.8 GHz: <26 dBm (FCC/SRRC); <14 dBm(CE)

Bluetooth

  • Protocol

  • Bluetooth 5.1

  • Operating Frequency

  • 2.4000-2.4835 GHz

  • Transmitter Power (EIRP)

  • <10 dBm

BS30 Intelligent Battery Station

  • Dimensions

  • 353×267×148 mm

  • Net Weight

  • 3.95 kg

  • Compatible Battery Type

  • TB30 Intelligent Flight Battery WB37 Intelligent Battery

  • Input

  • 100-240 VAC, 50/60 Hz

  • Output

  • TB30 Battery Port: 26.1 V, 8.9 A (supported up to two outputs simultaneously) WB37 Intelligent Battery: 8.7 V, 6 A

  • Output Power

  • 525 W

  • USB-C port

  • Max. output power of 65 W

  • USB-A port

  • Max. output power of 10 W (5 V, 2 A)

  • Power Consumption (when not charging battery)

  • < 8 W

  • Output Power (when warming up battery)

  • Approx. 30 W

  • Operating Temperature

  • -20° to 40° C (-4° to 104° F)

  • Ingress Protection Rating[3]

  • IP55 (with the cover closed properly)

  • Charging Time[6]

  • Approx. 30 min (charging two TB30 batteries from 20%-90%) Approx. 50 min (charging two TB30 batteries from 0%-100%)

  • Protection Features

  • Anti-Backflow Protection Short Circuit Protection Over Voltage Protection Over Current Protection Temperature Protection

Description

DJI M30T Series Drone DJI RC Plus Remote Controller With BS30 Battery Station

Buy  DJI M30T Series Drone + DJI RC Plus Remote Controller With BS30 Battery Station from us at the best price of DJI M30T Series Drone + DJI RC Plus Remote Controller With BS30 Battery Station in Pakistan and enjoy our nationwide free delivery, customers from Karachi, Lahore, Islamabad, Quetta, Peshawar, Multan, Faisalabad, Sialkot, Hyderabad can get deliveries within 24 hours. Matrice 30 Series - Power in Portability - DJI

Powerful Flight Performance

DJI Launches The Ultimate Foldable DJI Enterprise Drone, The DJI Matrice 30 Or M30, And More...

A balance of power and portability delivers higher operational efficiency

41-min

15 m/s

7000 m

23 m/s

Max Flight Time1

Wind Resistance2

Service Ceiling3

Max Speed

TempCheck H20T

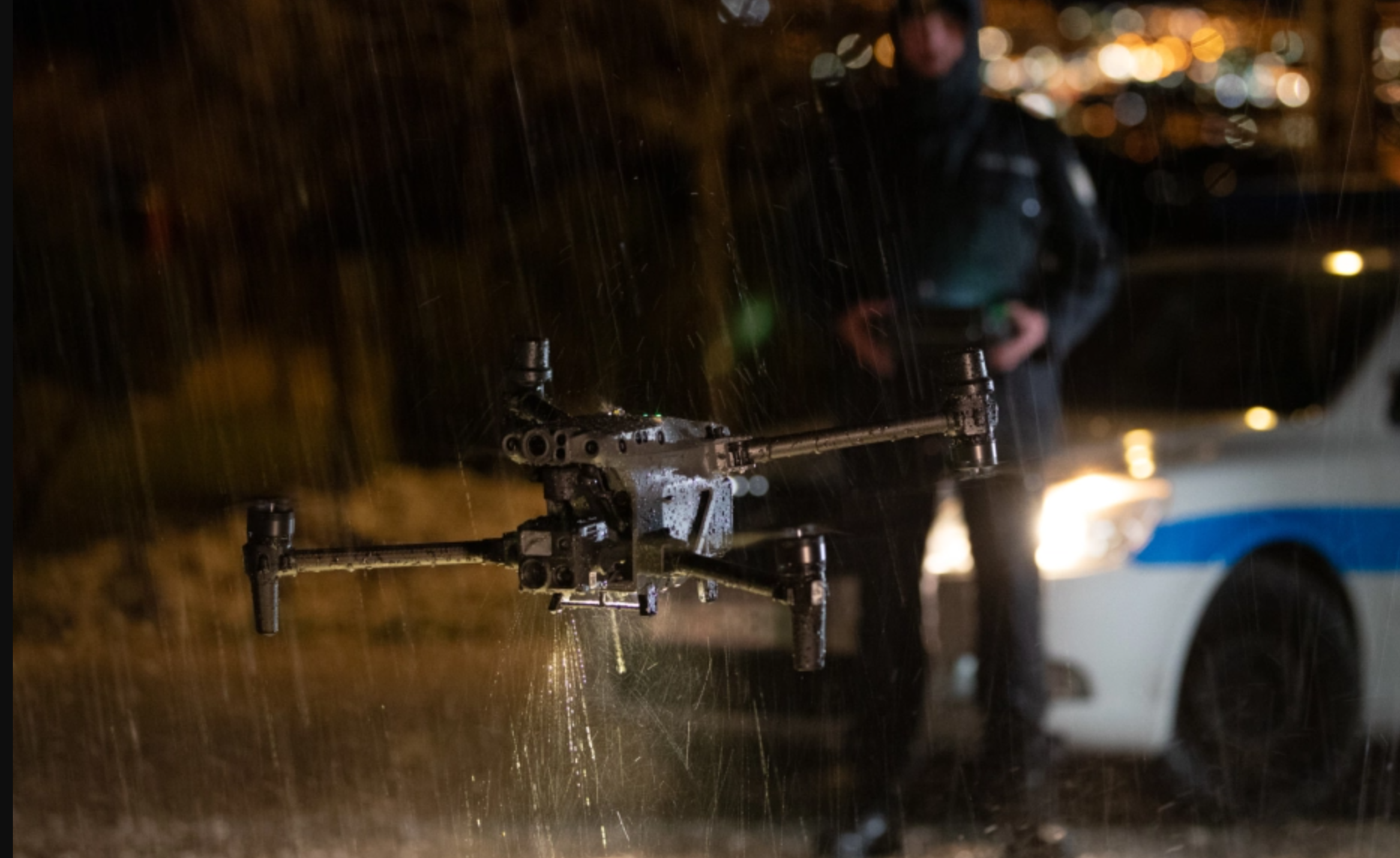

Environmental Adaptability

With IP55 protection, the M30 can easily handle adverse weather and temperatures ranging from -20° C～50° C.

DJI Matrice 30 Series - The Ultimate Buyer's Guide | COPTRZ

Safe and Reliable

Dual-vision and ToF sensors appear on all six sides of the aircraft, keeping it and your mission safe. The built-in ADS-B receiver provides timely warnings of any incoming crewed aircraft nearby.

Redundancies and Backup Systems

Built-in advanced redundancy systems help keep your critical missions going even in unexpected scenarios.

Enhanced Transmission

Four built-in antennas support OcuSync 3 Enterprise, which enables triple-channel 1080p video transmission, and seamless swapping between input feeds, even in complex environments.

DJI compact M30/M30T enterprise drone with RC Plus controller announced - Gizmochina

Compact and foldable, the M30 Series is easy to pack up, carry, and deploy.

Capture Everything

The M30 Series integrates wide, zoom, and thermal cameras (M30T only) with a laser rangefinder, which together can capture the aerial data you need, when you need it.

Buy DJI M30 Series drone with RC Plus with BS in Pakistan

Wide Camera

Equivalent Focal Length: 24 mm, DFOV: 84° 12 MP 1/2” CMOS Sensor Video Resolution: 4K/30fps

Zoom Camera

48 MP 1/2” CMOS Sensor 5x-16x Optical Zoom 200x Max. Hybrid Zoom Photo Resolution: 8K Video Resolution: 4K/30fps



Thermal Imaging Camera

Thermal Imaging Camera

Cup Visual vs Thermal GPC Backpack for DJI M30/M30T - GenPac Drones

Equivalent Focal Length: 40 mm Resolution: 640×512 Frame Rate: 30fps Measurement Accuracy: ±2°C or ±2%4

Laser Rangefinder

Range: 3 m – 1200 m Accuracy: ±(0.2m D×0.15%)5

5f76bbe5b495c975e4050af222ece297

75ce9392fcf5e0370a6dcd7a61cb4272

5d1b1d39c2d4fe5b1de0f215b23bc189

6108be8db894bfc97d8e3993f66fcc00

Superior Image Quality

Night Flight

Smart Low-Light Photo

RGB

Infrared

Laser Rangefinder

Capture bright, clear images in low-light conditions with Smart Low-Light Photo.

Built For Commercial Drone Pilots

The 7-inch widescreen DJI RC Plus with dual control mode is tailor-made for Enterprise users.

Enterprise Environmental Adaptability

9acd88bf1c77155924aae20431647f31IP54 Protection

Water and dustproof

9acd88bf1c77155924aae20431647f31-20°C to 50°C

Capable in climates both hot and cold

key::auto.www.pm320.section-22138.1d2abd

d1dc8193eeacc1b760e87340083facb8

6c221458db402a47bb445e1698be519e

Improved Stability and Battery Life

Four Antenna OcuSync 3 Enterprise

Cover more area with stable video transmission and removable dual-antennas.

Extended Battery Life

Internal and external battery configuration powers 6 hours of battery life and enables hot-swapping for seamless, uninterrupted flight operations.

Introducing the All-new DJI Pilot 2

A revamped Enterprise flight interface designed to improve piloting efficiency and flight safety.

Reimagined User Interface

Drone and payload controls can be easily accessed with one tap. Clear presentation of flight details and navigational information improves user experience and flight efficiency.

Ergonomic Design For Safety and Efficiency

Pilot 2 works seamlessly with the DJI RC Plus. Screenside and customizable buttons are all within reach and enable quick operations, such as adjusting camera views and dropping PinPoints.

Pre-flight Checklist

A comprehensive checklist helps you quickly confirm aircraft status and parameter settings, so you can take off with confidence.

Navigation Display

An optimized interface displays your home point, PinPoints, and nearby obstacles to improve safety and provide comprehensive situational awareness.

Alert Notifications

Stay updated with timely alerts as conditions and scenarios evolve.

Ground-to-Cloud Synergy

Master Your Mission Environment

FlightHub 2 offers a 2.5D Base Map for quick terrain awareness, One-Tap Panorama Sync for rapid site overviews, and Cloud Mapping for fast mapping in RGB or infrared.

Mission Live Streaming

Connect multiple users to one or many drone operations simultaneously, and keep teams updated with the latest developments thanks to low latency, high-resolution livestreaming.

Live Annotations

Highlight objects or areas of interest for efficient mission management and resource distribution. Annotations are visible to ground teams, pilots, or any team member for timely project alignment and task distribution.

Streamlined Team Communication

Synchronize valuable information such as teams position, drone status, mission details and more, in real time and across multiple device types, making team collaboration easier than ever.

Route Planning and Management

Flight routes and missions planned in FlightHub 2 can be easily synchronized with Pilot 2. Operation data can be automatically uploaded to FlightHub 2 Media Files for unified management and analysis.

Smart Inspection

An upgrade to Live Mission Recording brings an optimized user interface, convenient task recording, and target point marking, saving 90% of operation steps. Gimbal angle and photo settings can be adjusted between Waypoints, improving flight and mission efficiency.

DJI Matrice 30 Series BS30 Intelligent Battery Station

Matrice 30 BS30 Battery Station - Mobile charging Question - Questions & Answers - Grey Arrows Drone Club UK

A smart, portable solution with multiple charging modes to meet your mission needs. Capable of charging four pairs of TB30 Intelligent Flight Batteries and one pair of RC Plus batteries, pairs are charged one at a time, with one pair taking just 30 minutes to charge from 20-90%.
